China manufacturer regeneration device Precision filter SH-006
Date:2023/6/19 10:38:51 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,China manufacturer regeneration device Precision filter SH-006
DESCRIPTION
regeneration device Precision filter SH-006 is used for the outlet filter screen of the EH oil supply system pump of the turbine fire resistant oil, with a flow rate of 90L/min and an accuracy of 10 μ m. Fluorine rubber O-ring seal. Used to filter out mechanical impurities and colloidal substances in the fire-resistant oil at the outlet of the EH oil pump, reducing equipment malfunction caused by oil blockage, affecting production, and increasing production costs.
FUNCTION OF FILTER SH006
Power station EH oil regeneration device: A set of EH oil regeneration device is installed next to the oil tank to store adsorbents and regenerate fire-resistant oil. It is composed of a diatomaceous earth filter (to keep the oil neutral, remove water, etc.) and a fiber filter (to remove impurities) in series. When putting into the regeneration device, the bypass valve of the diatomaceous earth filter should be opened first to inject oil into the diatomaceous earth filter, and then the inlet valve of the diatomaceous earth filter should be opened and the bypass valve closed. When the oil temperature is between 43 and 54 ¡æ and the pressure of any filter reaches 0.21 Mpa, the filter element needs to be replaced.
The filter element SH006 produced by Dongfang Yoyik is installed in a fiber filter to remove metal particles caused by component wear and rubber impurities caused by seal wear in the EH oil regeneration device.
REGULAR MODELS
generator stator cooling water filter SG125/0.7
lube filter LY-38/25W
lube filter LY-10/10W-40
Filter element WU-6300*1200
jacking oil pump discharge filter 707FH3260GA10DN40H7F3.5C
EH oil main pump suction filter HQ25.200.11Z
regeneration oil pump suction filter HQ25.300.12Z
filter HQ25.12Z
hp/ip/lp actuator filter HQ25.01Z
Circulating oil pump oil-return flushing filter DP405EA01V/-F

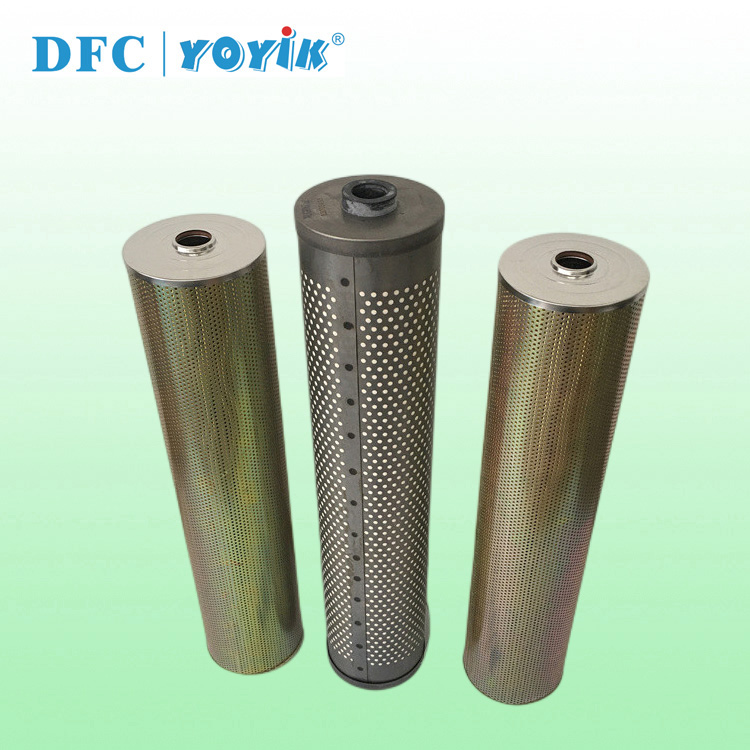

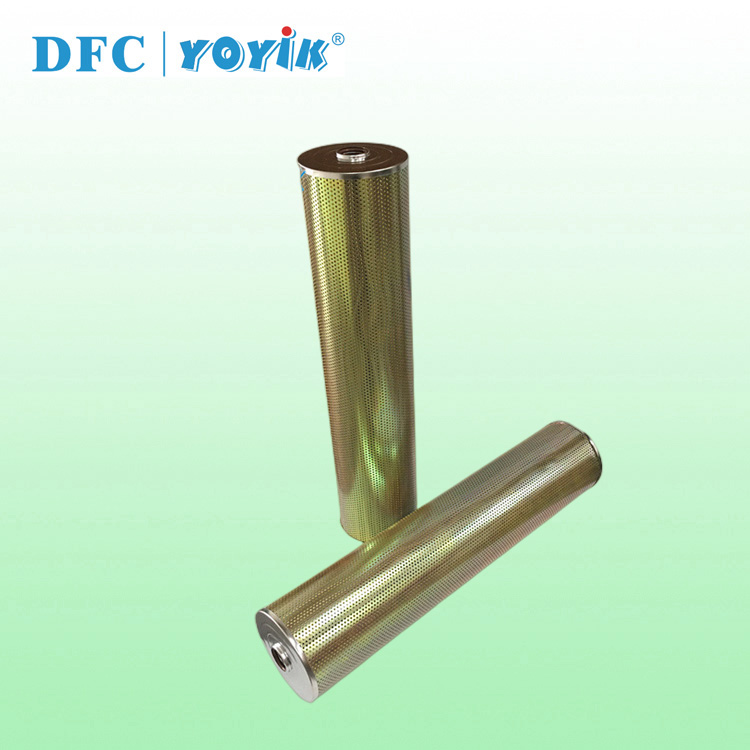

PRODUCT PICTURE
