Rotor Blades

Date:2016/7/12 20:00:43 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,

China Steam Turbine Rotor Blades Manufacturer





PRODUCT DESCRIPTION



The steam turbine moving blade is one of the most important components. After the airflow passes through the blade, the energy is converted into mechanical work for the blade and rotor. Its technical condition has a direct impact on the safety and economic operation of the steam turbine.

There are many moving blades, which often cause serious accidents during operation due to the fracture of one or several blades. Therefore, the moving blades should have good aerodynamic characteristics, qualified strength, complete rotational characteristics, reasonable structure, and good process performance. There are strict requirements for blade processing and equipment.





The working moving blade is composed of three parts: blade root, blade profile, and blade tip.





SPARE PARTS OF MOVING BLADES



HP Stage Blades	IP Stage Blades
LP Stage Blades	Rotor blade for LP forward direction

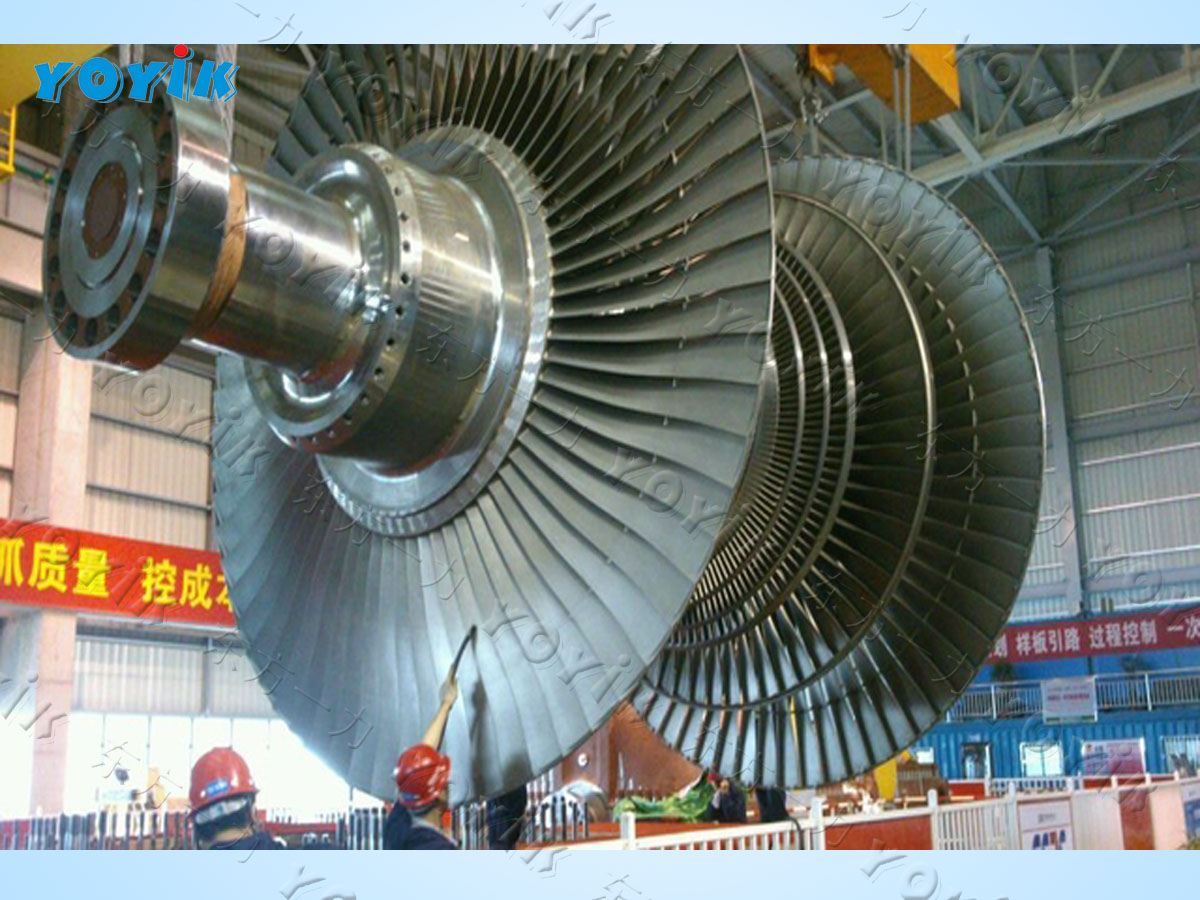

PRODUCT PICTURE
