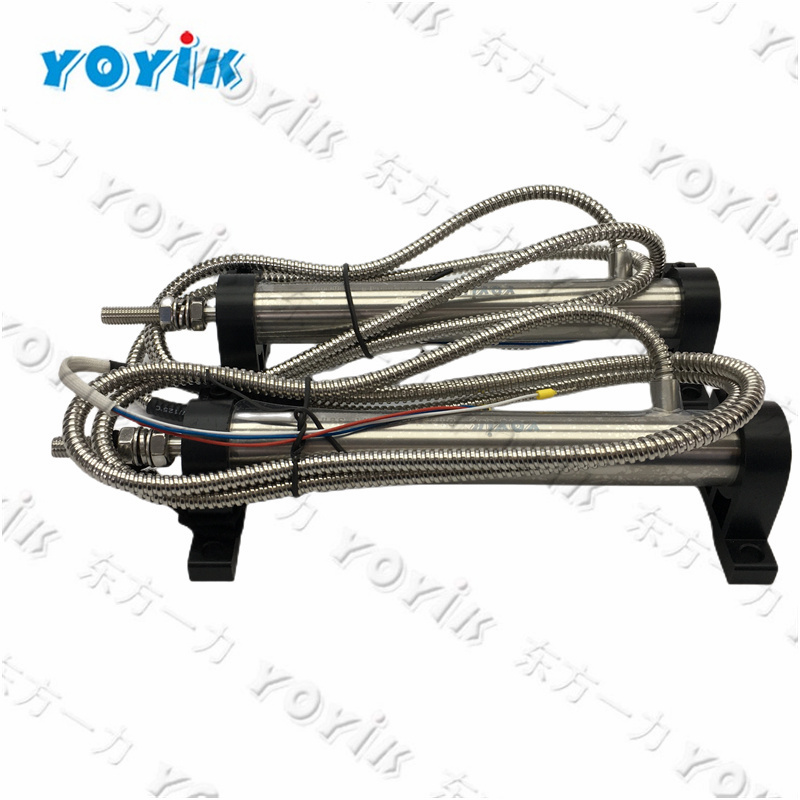

The HL-3-200-15 stainless steel LVDT Position Sensor is suitable for monitoring and protecting the stroke and valve position of hydraulic motors, with a wide range of available applications, and is widely used in industries such as power plants and steel mills.

During the use of HL-3-200-15 stainless steel LVDT Position Sensor, some faults and various problems inevitably occur. Here are some common situations:

1. The parameters displayed by the sensor are incorrect.

Most of these situations belong to inaccurate positioning. The sensor can be removed and repositioned to adjust the installation position. If not, recheck the installation and wiring issues. In a few cases, there are sensor manufacturing issues, such as inaccurate values of some small parameters of the sensor.

2. Abnormal output of LVDT displacement sensor

Usually, problems such as magnetic ring detachment, insufficient power supply, unstable wiring, unstable installation, and work blind spots may occur. Firstly, adjust the sensor installation. If there is no solution, check the magnetic ring, power cord, wiring, etc.

3. Installation precautions

When installing, the iron core should be flat and pay attention to whether there is a magnetic field around it, and try to stay away from the magnetic field as much as possible. So the object being tested should be consistent with the sensor material and 1.5 times larger than the sensor surface.
