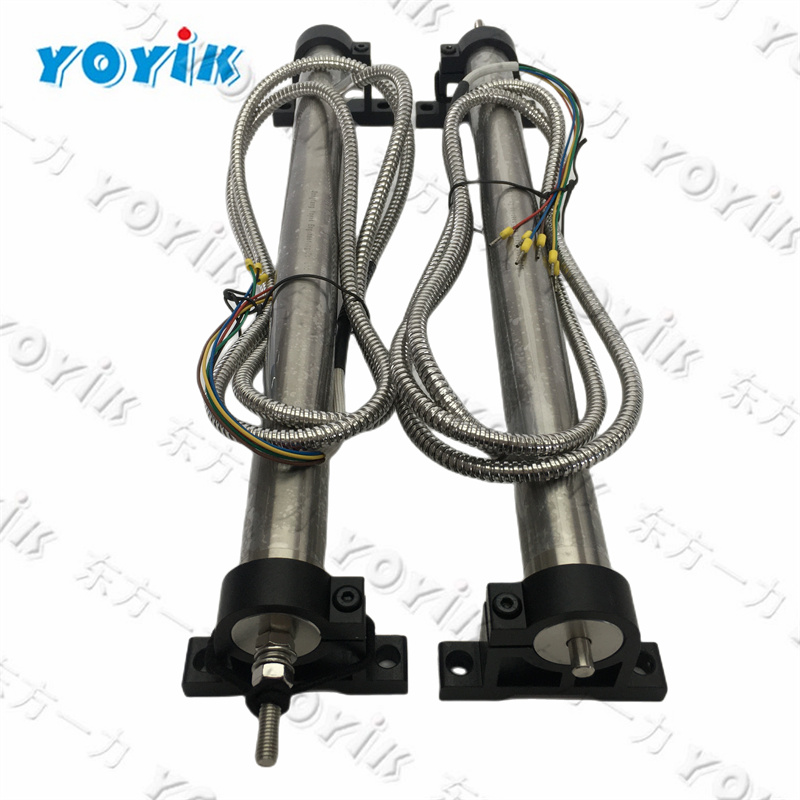

The usage method of the  LVDT Position Sensor HL-6-300-15 is as follows:

1. Install sensor: Install the sensor on the hydraulic cylinder as required, ensuring that the sensor is perpendicular to the piston rod and that the sensor is installed securely and reliably.

2. Connection cable: Connect the sensor cable to the controller or data collection device and ensure that the cable connection is secure.

3. Calibration of sensors: For hydraulic servomotor travel sensors with analog signal output, calibration is required. The calibration method generally involves automatic or manual calibration using equipment or instruments.

4. Sensor detection: Before officially using the sensor, it is necessary to perform a detection to ensure that the output signal of the sensor matches the actual stroke.

5. Monitoring sensors: During use, it is necessary to regularly monitor and maintain the sensors to ensure their normal operation.

It should be noted that the installation and use of the hydraulic motor travel sensor need to comply with relevant specifications and standards, such as the standard "Technical Conditions for Travel Sensors" and "Inspection Methods for Travel Sensors". At the same time, attention should be paid to factors such as environmental temperature, humidity, and electromagnetic interference of the sensor to ensure its stability and accuracy.
