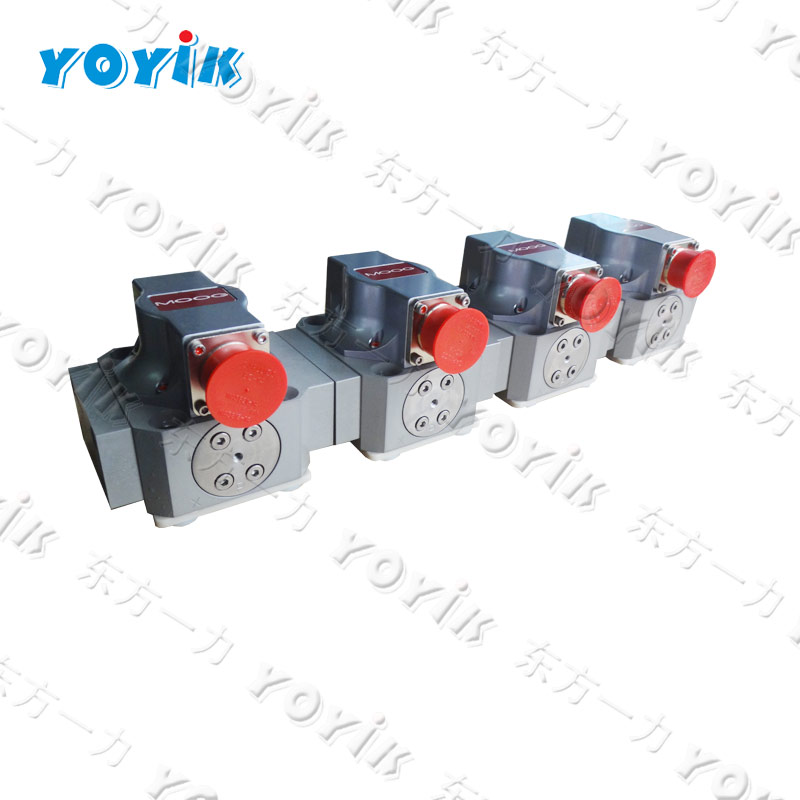

                             YOYIK SERVO VALVE G761-3033B EH OIL SYSTEM USE

The G761-3033B servo valve can be used as three way and four way throttling flow control valves, and the control performance is better when used for four way valves. The series valve is a high performance two stage electro-hydraulic servo valve. The rated flow rate is 4L/min to 63L/min at rated pressure drop of 7Mpa.



The working principle of G761: The input of a current command signal to the torque motor's coil will produce electromagnetic force acting on both ends of the armature, thus the armature will deflect the baffle in the spring tube. The deflection of the baffle will reduce the flow rate of a nozzle, and then change the pressure on the spool which is communicated with the nozzle to push the spool to move toward one side.



G761 servo valve parameter characteristics:

And the guidance pressure is 210 bar

Resolution < 0.5%

Magnetic hysteresis < 3%

Working pressure: 315 bar

Frequency response: 90 ~ 180 Hz (+/-10% signal, -3db)

Step response: 6 ~ 9 msec (the valve axis is fully opened by 0-->100%



Dongfang Yoyik Engineering Co., Ltd is an industrial supplier based on Deyang, known as the city of heavy industry in China. We are specialized in manufacturing and trading the spare parts of power unit, including filter and filter elements, sealants, sensors, pumps, valves and other work pieces.
