Action principle and control oil generation of AST solenoid valve GS061600V: After pressure oil passes through a throttle orifice of 0.8 (at the pressure oil inlet of servo valve), it enters under the pistons of the main valve oil engine cylinders, and also into the bottom of unloading valves on the main valve oil engine manifold blocks; under the action of anti-fuel oil pressure, the main valve oil motors overcome the friction force, steam action force and valve self-weight of the valves. At the same time, the pressure oil sent to the lower part of the unloading valve throttles through a hole on the unloading valve, forming an automatic emergency interruption control oil (AST control oil).

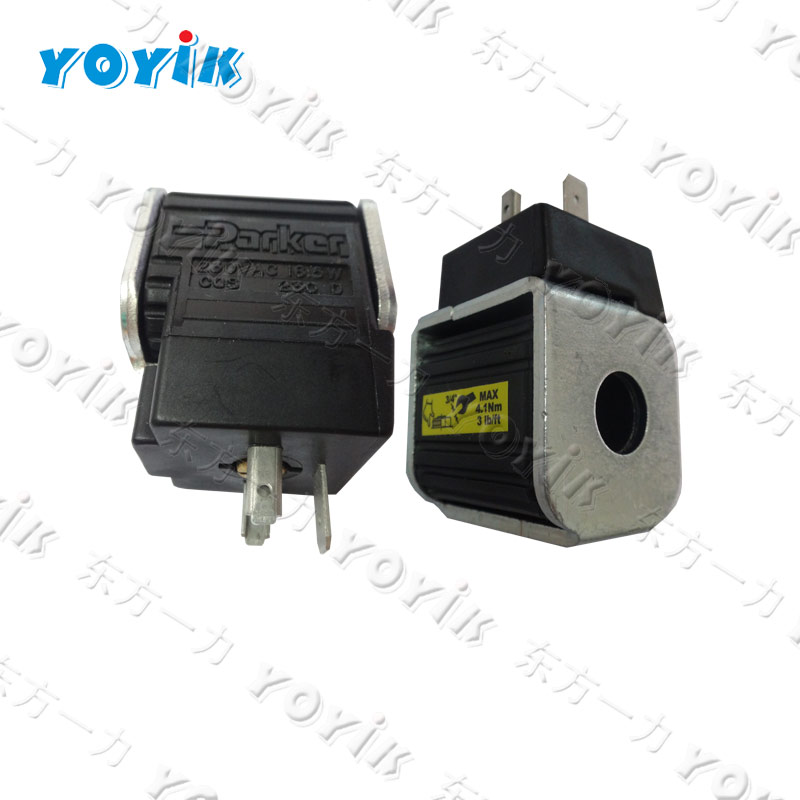

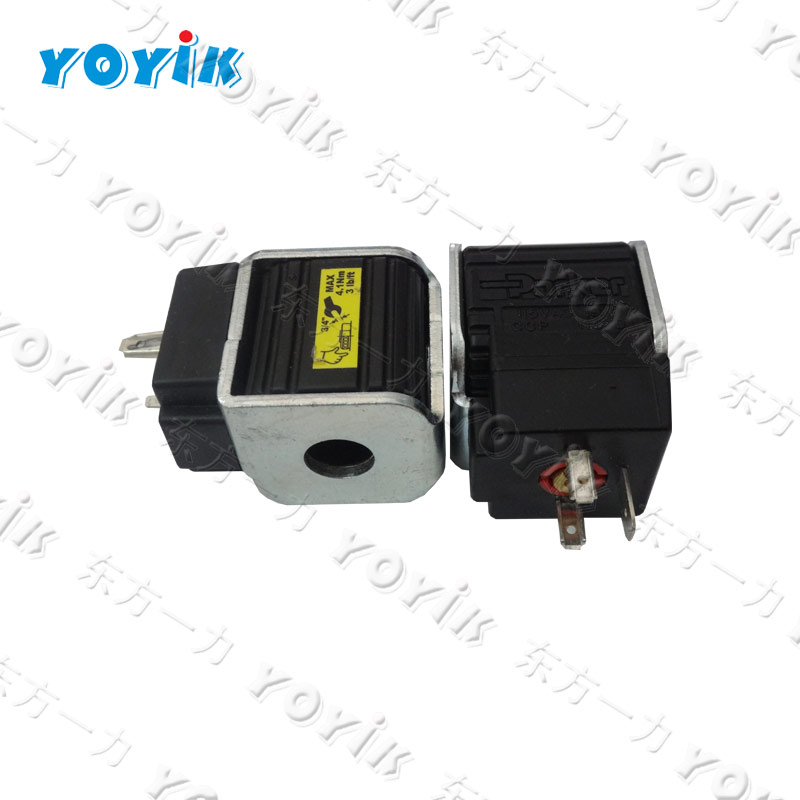

AST/OPC solenoid valve coil CCP115D 19W 115VAC

AST/OPC solenoid valve coil CCP115M 19W 115VDC

AST/OPC solenoid valve coil CCP230D 22.3W 230VAC

AST/OPC solenoid valve coil CCP230M 19W 230VDC

AST/OPC solenoid valve coil CCS115D

AST/OPC solenoid valve coil CCS115M 14W 120VDC

AST/OPC solenoid valve coil CCS230D 16.5W 230VAC

AST/OPC solenoid valve coil CCS230M
