HQ25.600.14Z EH oil main pump outlet filter element

Date:2017/10/18 17:11:34 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,

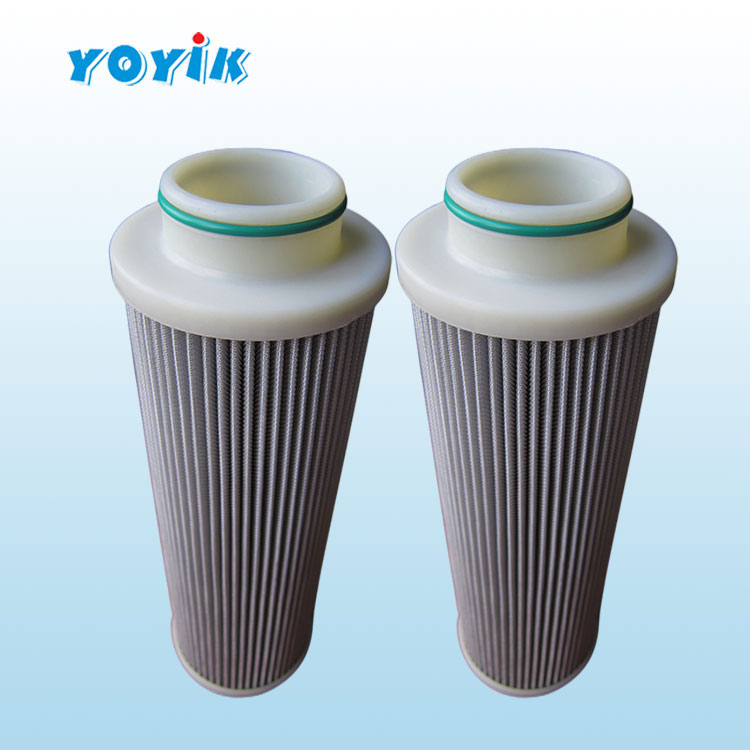

HQ25.600.14Z EH oil main pump outlet filter element

The EH oil main pump outlet filter element HQ25.600.14Z is a filter element used at the outlet of the oil filter with a filtering precision of 3 μ m. It is made of glass fiber filter material, and has the characteristics of high precision, large dirt holding capacity, good demulsification effect, etc.

performance index of EH main oil pump outlet filter element HQ25.600.14Z

1. Filtering precision: 3 μ m

2. Working pressure: 21Mpa

3. Working medium: general hydraulic oil, phosphate ester hydraulic oil, emulsion, water glycol, etc

4. Working temperature: - 30C~110C

5. Filter material: glass fiber filter material

6. Structural strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa

7. Scope of use: It is used for pressure oil filtration of hydraulic and lubrication systems to filter pollutants in the system and ensure the normal operation of the system

HQ25.600.14Z EH oil main pump outlet filter element
