China manufacturer and supplier POSITION LVDT SENSOR 2000TD 0-100 MM

Date:2023/8/22 11:08:04 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,

China manufacturer and supplier POSITION LVDT SENSOR 2000TD 0-100 MM



DESCRIPTION



The principle of POSITION LVDT SENSOR 2000TD 0-100 MM is that the function of linear displacement sensor is to convert linear mechanical displacement into electrical signals, and it belongs to a type of linear displacement sensor. Simply put, it is an iron core movable transformer. The core components are the iron core and coil. During the working process, the iron core moves within the linear range of the coil, and the difference between the induced electromotive forces generated by the two coils is the output voltage, which is proportional to the displacement.



Characteristic OF SENSOR 2000TD 0-100 MM



1. Travel range: 0-100mm;

2. AC mV/DC voltage/current output;

3. Environmental protection level: IP65;

4. Core+extension, spring loaded and rod end bearing versions;

5. Optional IP68 diving and high-temperature versions at 200 ° C and 150 ° C.



REGULAR MODELS



Rotation Speed Probe CS-03
Rotation Speed Probe CS-1 L=90
LVDT Position Sensor TD-1 0-600
LVDT Position Sensor TD-1-800
Position Transmitter TDZ-1F INPUT:1-5VDC OUTPUT:24VDC
Rotation Speed Probe ZS-04 L=100
Bimetal Thermometer WSS-581W
CV LVDT Sensor 191.36.09.01
LVDT Position Sensor TDZ-1-H 0-300
LVDT Position Sensor TDZ-1E-45 0-160
LVDT Position Sensor TDZ-1E-23

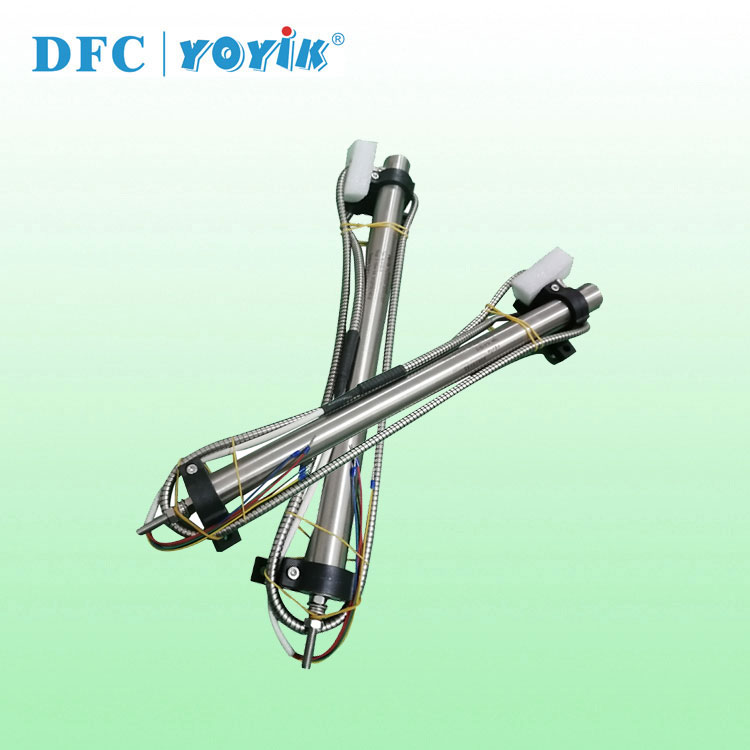

PRODUCT PICTURE
