China manufacturer and supplier POSITION LVDT SENSOR 1000TD 0-50 MM
Date:2023/8/21 10:04:26 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,China manufacturer and supplier POSITION LVDT SENSOR 1000TD 0-50 MM
DESCRIPTION
The POSITION LVDT SENSOR 1000TD 0-50 MM belongs to the six wire system sensor, and its working principle is a movable transformer with an iron core. The sensor consists of three sets of coils, one primary coil, and the outgoing wires are brown and yellow; There are two sets of secondary coils, one with black and green outgoing wires, and the other with blue and red outgoing wires. LVDT displacement sensor 1000TD, also known as differential transformer type displacement sensor, connects the green and blue lines as differential outputs.
Technical Parameter OF POSITION LVDT SENSOR 1000TD 0-50 MM
1. Linear range: 0-50mm.
2. Linearity: ± 0.3% of full stroke.
3. Working temperature: -40~150 ℃ (conventional)
-40~210 ℃ (high temperature)
4. Sensitivity coefficient: ± 0.03% FSO./℃
5. Leads: Six polytetrafluoroethylene insulated sheathed cables, external stainless steel sheathed hoses.
6. Vibration tolerance: 20g to 2 kHz.
REGULAR MODELS
SENSOR; POSITION LVDT 1000TD 0-50 MM
SENSOR; POSITION LVDT 2000TD 0-100 MM
SHAFT POSITION PROBE PR6424/010-110
TRANSDUCER S3(T)-WD-3S-515A4BN
TRANSDUCER S3(T)-FD-451A4NY
TRANSDUCER S3(T)-VD-1S15A4S
Smoke fan speed sensor CS1
THERMOCOUPLE WRN2-2325NM
Board 100471-03
IGNITOR SPARK ROD MAIN BOILER XDZ-2F-3100

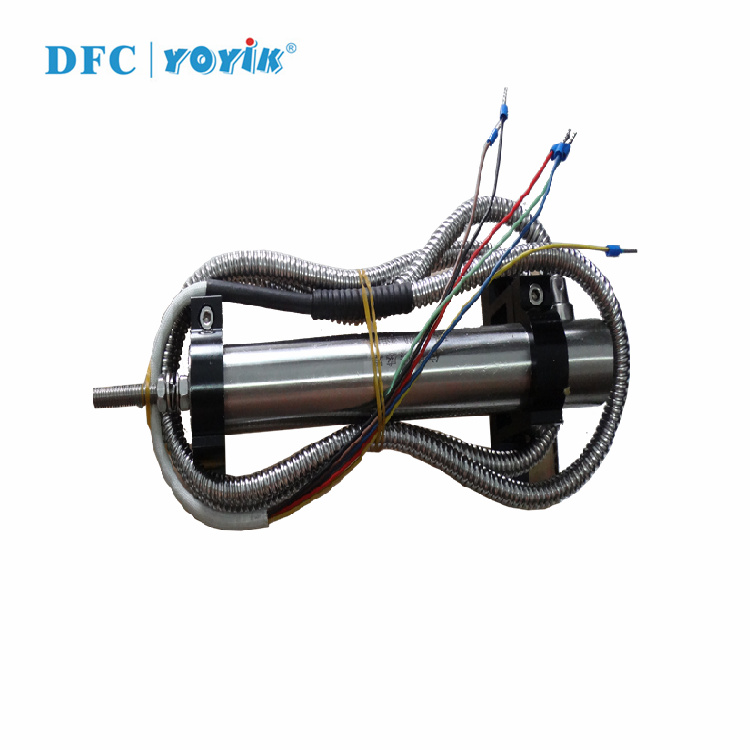

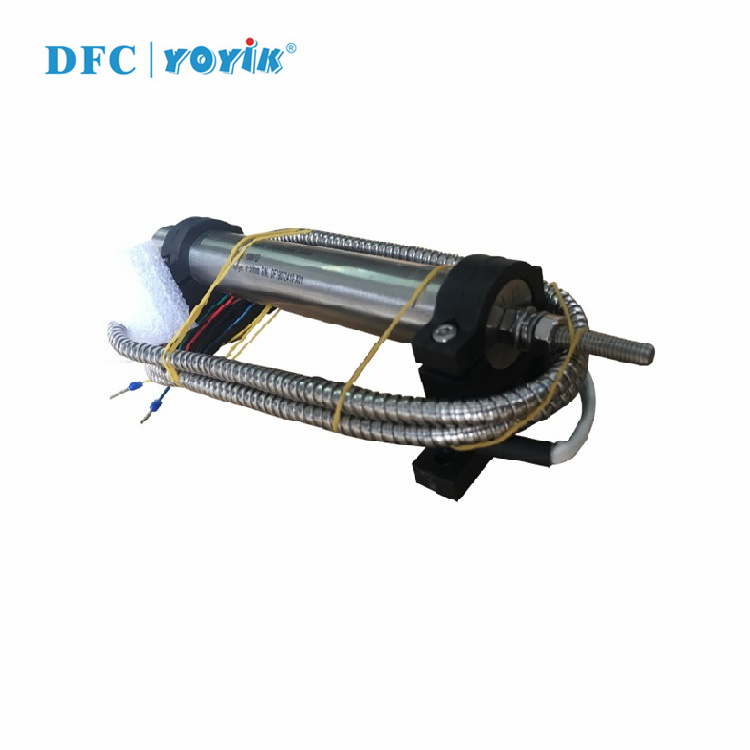

PRODUCT PICTURE
