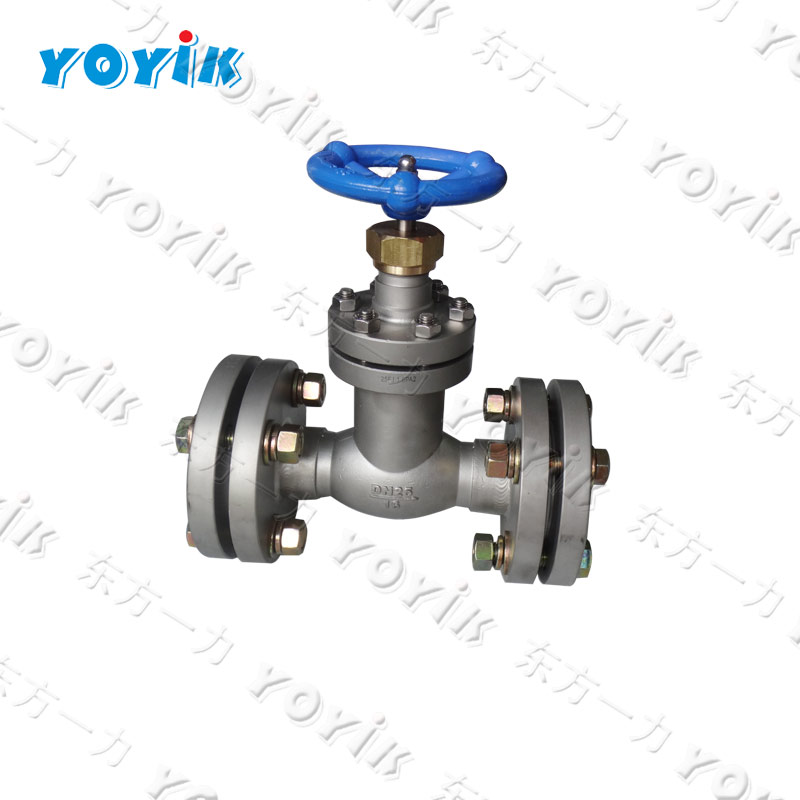

The working principle of flange bellows globe valve 15FWJ1.6P is to rely on the pressure of the valve stem, and the sealing surface of the valve disc and valve seat tightly adhere to prevent the flow of medium.

Product Advantages of flange bellows globe valve 15FWJ1.6P

1. The product has a reasonable structure, reliable sealing, excellent performance, and beautiful appearance;

2. The sealing surface is welded with Co based hard alloy for wear resistance, corrosion resistance, good friction resistance, and long service life;

3. The valve stem is quenched and tempered with surface nitriding treatment, which has good corrosion and friction resistance properties;

4. Double sealing, more reliable performance, zero leakage;

5. The material of the parts, flange and welding number size can be reasonably selected according to the actual working conditions or user requirements, to meet various engineering needs.



Selection characteristics: The flange bellows globe valve 15FWJ1.6P  has good regulating performance, simple structure, easy maintenance, small volume, but has a large opening and closing torque and high water flow resistance.
