ZS-01 / ZS-02 / ZS-03 / ZS-04 Rotational Speed Sensor for Steam Turbine

Date:2021/2/21 14:39:39 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,

China Manufacturer ZS-01 / ZS-02 / ZS-03 / ZS-04 Rotational Speed Sensor for Steam Turbine





PRODUCT DESCRIPTION





The ZS series electromagnetic rotational speed sensor is a cost-effective, versatile universal speed sensor for measuring the rotational speed of magnetically conductive objects. It uses a non-contact measurement method to measure the frequency of the speed measuring gear or the key phase. The rotational speed signal is converted into a corresponding electrical pulse signal for use in measuring the rotational speed of the electronic device.



Features:

   -  Non-contact measurement: no contact with the tested rotating parts, no wear.

   -  No external working power is required. The output signal is strong and no amplifier is required. Good anti-interference performance.

   -  Integrated design: simple and reliable structure, high vibration and impact resistance.

   -  Widely available, high reliability, good price



The speed sensor ZS series is used with rotational speed monitor HZQS-02A, HZQS-02H, or HZQW-03A for measuring Steam Turbine shaft rotation speed.





TECHNICAL SPECIFICATION



DC Resistance

470Ω~530Ω

Range

100~10000 R/min

Working Temperature

-20°C~120°C

Storage Temperature

-20°C~+150°C






REGULAR MODEL NUMBER



ZS-01 ZS-03
ZS-01 L=100 ZS-03 L=100
ZS-01 L=65 ZS-03 L=65
ZS-01 L=75 ZS-03 L=75
ZS-01 L=80 ZS-03 L=80
ZS-01 L=90 ZS-03 L=90
ZS-02 ZS-04
ZS-02 L=100 ZS-04 L=100
ZS-02 L=65 ZS-04 L=65
ZS-02 L=75 ZS-04-150-3000
ZS-02 L=80 ZS-04-150-5000
ZS-02 L=90 ZS-04-75-3000





PRODUCT PICTURE

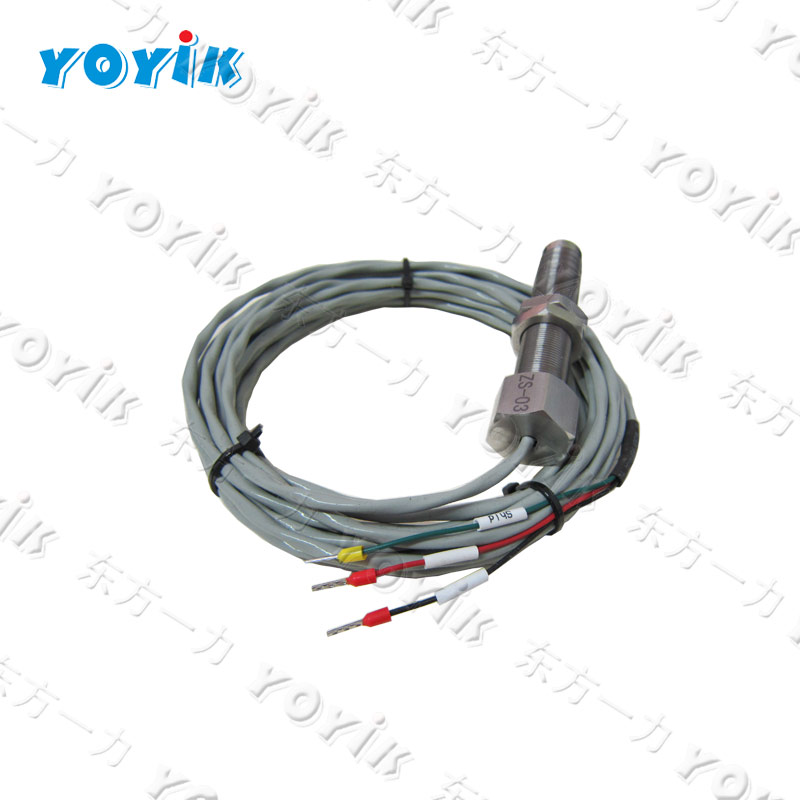

ZS-01 / ZS-02 / ZS-03 / ZS-04 Rotational Speed Sensor for Harbin



ZS-01 / ZS-02 / ZS-03 / ZS-04 Rotational Speed Sensor for Harbin



Please contact us if your need is not listed above. SEND EMAIL
