YOYIK CS-1 D-065-05-01 ROTATE SPEED PROBE

Date:2020/11/25 17:34:32 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,

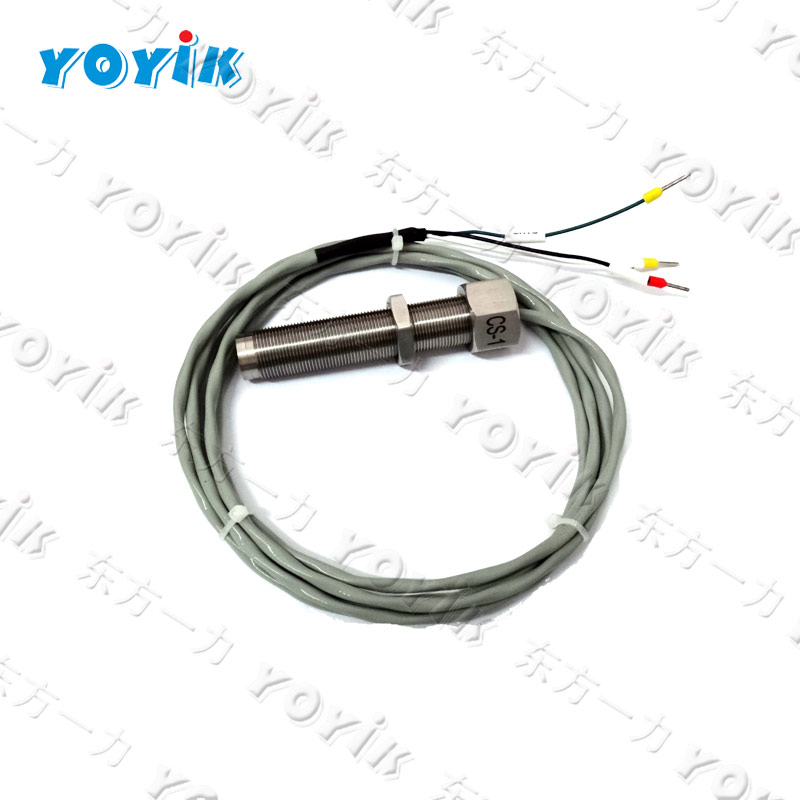

                       YOYIK CS-1 D-065-05-01 ROTATE SPEED PROBE

CS-1 D-065-05-01 ROTATE SPEED PROBE adopts the Hall effect principle. When the metal teeth pass through the front end of Hall sensor, the magnetic field changes. The hall element detects the change of magnetic field and converts it into an alternating electrical signal. The built-in circuit of the sensor amplifies and reshapes the signal, and outputs a good rectangular pulse signal. The measurement frequency range is wider, and it can measure 0 speed and output signal It is also more accurate and stable, and easy to install. It is widely used in speed measurement of vehicles, motors, fans and steam turbines.



Technical parameters:

1 working voltage: DC5 ～ 30V

2. Measurement range: 0 ～ 20kHz

3. Speed measuring gear form: module 1-3 (involute gear)

4 working temperature: - 30 ～ + 120 ℃

5 thread specification: M16 × 1 × 80mm

6. Installation clearance: 1 ～ 5mm
