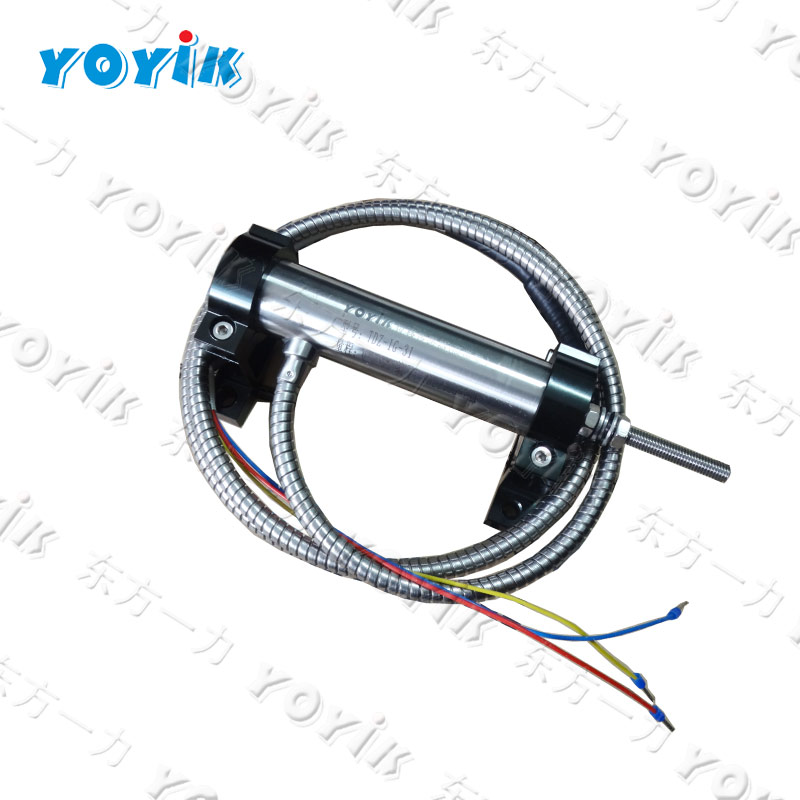

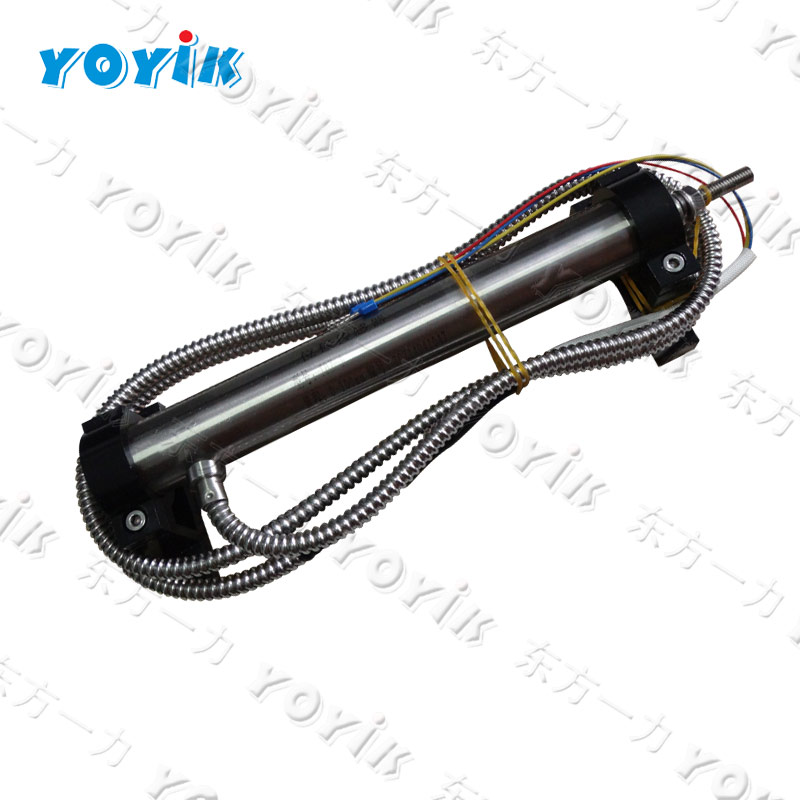

Dongfang yoyik supply LVDT displacement sensor TDZ-1B-02

Date:2018-12-27 15:24:56 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,

 Dongfang yoyik supply LVDT displacement sensor TDZ-1B-02

Working principle: LVDT displacement sensor TDZ-1B-02 uses the principle of differential inductance to convert the linearly shifted mechanical quantity into electric quantity, so as to automatically monitor and control the displacement. TDZ series displacement sensors have the advantages of small size, high precision, stable performance, good right-handedness and long service life. In the case of power plant ambient temperature of 80-120 °C, a steam turbine overhaul cycle can be continuously operated without replacement and maintenance.

Application: It has been widely used in mechanical power, automobile, aerospace, aviation, metallurgy, energy and water conservancy, national defense engineering and scientific research institutes.



Technical parameters:

Linear range	0¡«1000mm
Primary impedance	≥500Ω (oscillation frequency is 2 kHz)
Nonlinearity	≤0.5£¥F.S
Operating temperature	40~150¡æ (conventional) -40~210¡æ (high temp)
Coefficient of sensitive	£¼0.03£¥F.S°C
	Three Teflon insulated sheathed wire with stainless steel sheathed hose
Vibration tolerance	20g up to 2 kHz



The same series of products are:

Displacement sensor        TDZ-1-32

Displacement sensor        TDZ-1G-31

Displacement sensor        TDZ-1-H 0-60

Displacement sensor        TDZ-1-H 0-50

Displacement sensor        TDZ-1-H 0-300

Displacement sensor        TDZ-1G-43

Displacement sensor        TDZ-1G-41

Displacement sensor        TDZ-1G-33

Displacement sensor        TDZ-1G-04

Displacement sensor        TDZ-1B-04

Displacement sensor        TDZ-1B-03

Displacement sensor        TDZ-1B-02

Displacement sensor        TDZ-1-46

Displacement sensor        TDZ-1-45

Displacement sensor        TDZ-1-44

Displacement sensor        TDZ-1-41



DFCL-2018-12-27-A
