Rotation Speed Sensor CS-3 for generator use

Date:2018-6-29 9:08:39 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,

The Rotation Speed Sensor CS-3 is made of magnetorheological resistor and a new type of speed sensor. The core component is the use of magnetorheological resistor as a detection element, and then through a new signal processing circuit to reduce noise and function more perfect. By comparing with the output waveforms of other type tooth speed sensors, the error of the speed is very small and the linear characteristic has good consistency. The induction object is magnetic material or magnetic material, such as magnetic steel, iron and electrical steel. When the measured body has a magnetic or magnetic material with a convex (or sag), the sensor outputs pulse signals associated with the rotating frequency as the measured object rotates, so as to achieve the purpose of detecting speed or displacement.

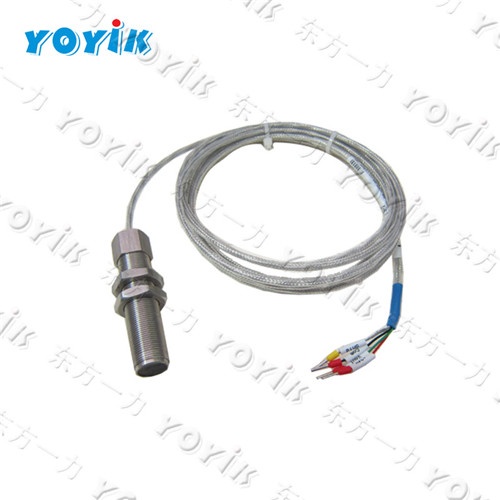

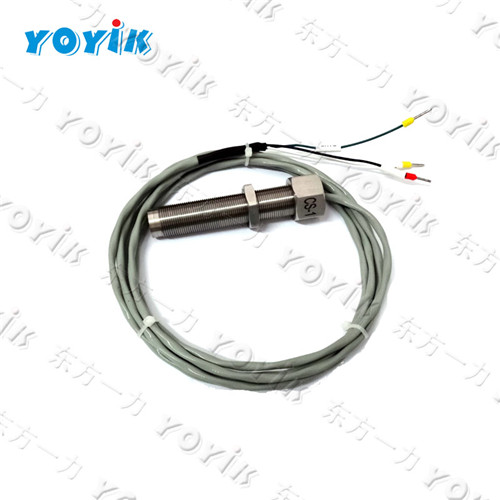

Rotation Speed Sensor CS-3Rotation Speed Sensor CS-3

Because of its convenient installation and versatility, it has been widely used in various fields. Especially in low speed or ultra low speed non-contact detection, there is a characteristic that other sensors can't reach. This feature fills the speed range of the domestic blank magnetoelectric sensor.

The same series of products are:

Rotation Speed Sensor CS-2
Synchronous Signal and Pulse Board
Rotation Speed Sensor ZS-02
Rotation Speed Sensor ZS-01
LVDT Position Sensor
Servo Card
Fire Detector Amplifier
Pulse Amplification and Detection Card
Rotation Speed Probe DF6101
Thermal Expansion Monitor DF9032 MaxA

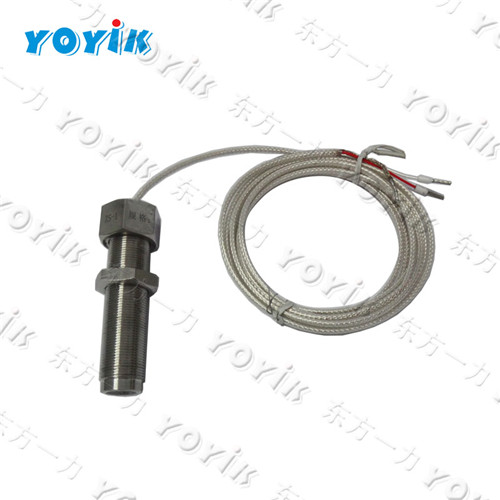

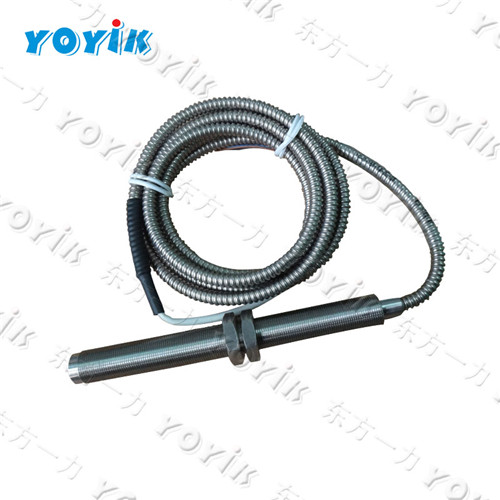

Rotation Speed Sensor CS-3Rotation Speed Sensor CS-3
