Speed Sensor DF6101-005-065-02-03-00-00 use for power plant units

Date:2018/6/8 8:33:53 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,

The Speed Sensor DF6101-005-065-02-03-00-00 is made of magnetorheological resistor and a new type of speed sensor. The core component is the use of magnetorheological resistor as a detection element, and then through a new signal processing circuit to reduce noise and function more perfect. By comparing with the output waveforms of other type tooth speed sensors, the error of the speed is very small and the linear characteristic has good consistency. The induction object is magnetic material or magnetic material, such as magnetic steel, iron and electrical steel. When the measured body has a magnetic or magnetic material with a convex (or sag), the sensor outputs pulse signals associated with the rotating frequency as the measured object rotates, so as to achieve the purpose of detecting speed or displacement.

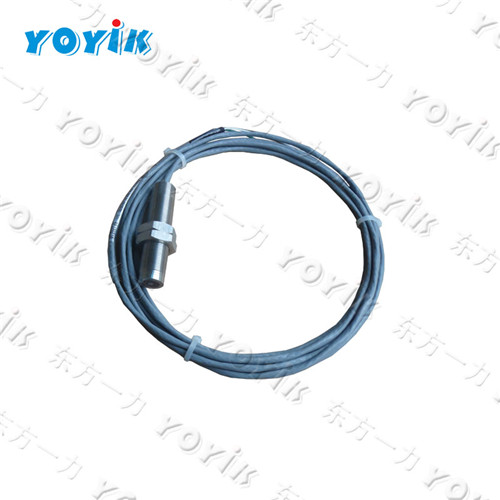

Speed Sensor DF6101-005-065-02-03-00-00Speed Sensor DF6101-005-065-02-03-00-00

The Speed Sensor DF6101-005-065-02-03-00-00 has the following characteristics:
1 High sensitivity, high reliability, long service life and long trigger distance.
2 Signal triggering for iron (soft) magnetic materials
3 The ability to resist electromagnetic interference in long distance transportation is strong
4 Good impact resistance and seismic resistance

The same series of products are:

Magnetoresistive Rotation Speed Sensor DF6202-005-050-04-00-10-000
Sensor DF6202-005-080-03-00-01-00
Signal Converter DF-KTV1-1 0204
Rotation Speed Probe G-065-02-01
Rotation Speed Probe G-075-02-01
Turbine Rotation Speed Gauge HZQS-02A
Rotation Speed Gauge HZQW-03H
LVDT Sensor LVDT TDZ-1-H 0-100
Impactor Monitoring Gauge RZQW-03A
Hydroturbine Guide Vane Feedback Sensor SWB-4
Hydroturbine Wheel Vane Feedback Sensor SWB-5
Rotation Speed Sensor SZCB-01
LVDT Position Sensor TD-1 0-1000

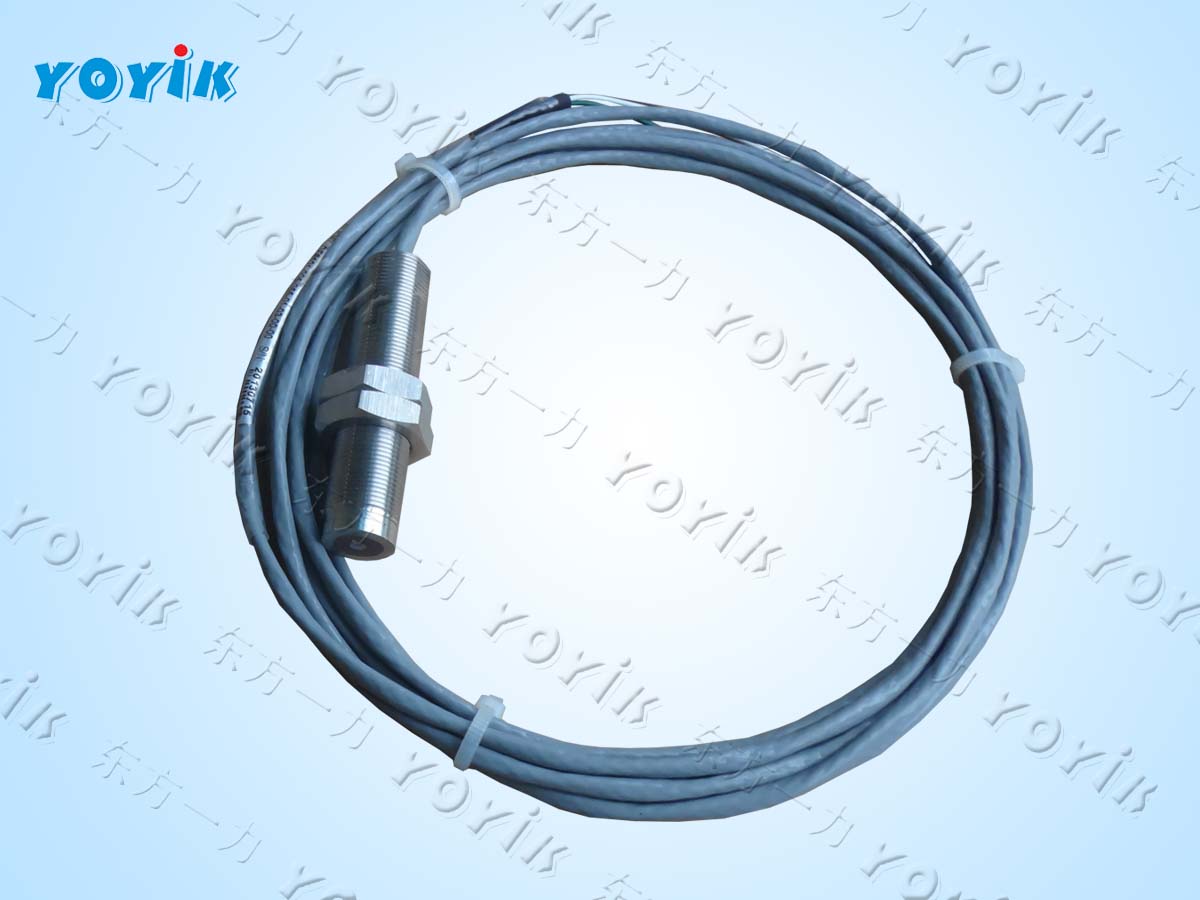

Speed Sensor DF6101-005-065-02-03-00-00Speed Sensor DF6101-005-065-02-03-00-00
