Rotation Speed Probe DF6101-005-065-01-03-00 by Dongfang yoyik

Date:2018-5-29 14:05:54 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,

Rotation Speed Probe DF6101-005-065-01-03-00 by Dongfang yoyik

Processing and customization

Yes

Brand

YOYIK

Model

DF6101-005-065-01-03-00

Type

Speed

Material

Metal

Physical properties of materials

Conductors

Crystal structure of material

single crystal

Manufacturing process

Integration

Output signal

analog type

Protection grade

65

Linearity

1（%F.S.）

Retardation

1（%F.S.）

Repeatability

1（%F.S.）

Sensitivity

1

DF series

speed probe

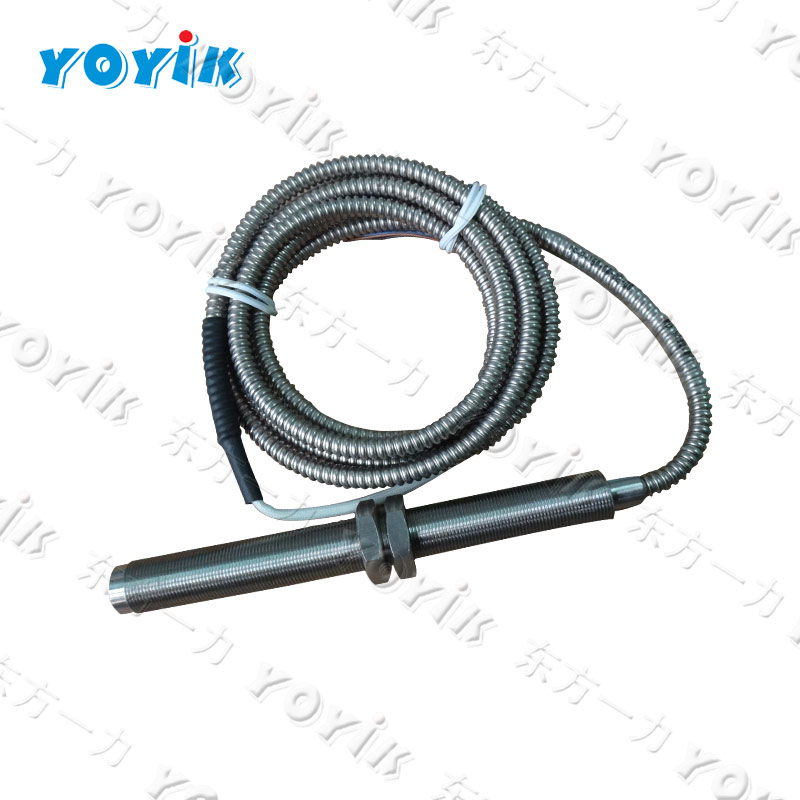

 Rotation Speed Probe DF6101-005-065-01-03-00



Rotation Speed Probe DF6101-005-065-01-03-00. DF series of rotating speed probe has strong anti-interference performance. The shell is stainless steel thread structure. It is easy to install and fixed, and the internal irrigation is sealed. It can be used in the bad environment of smoke, oil and gas, water vapor and so on.

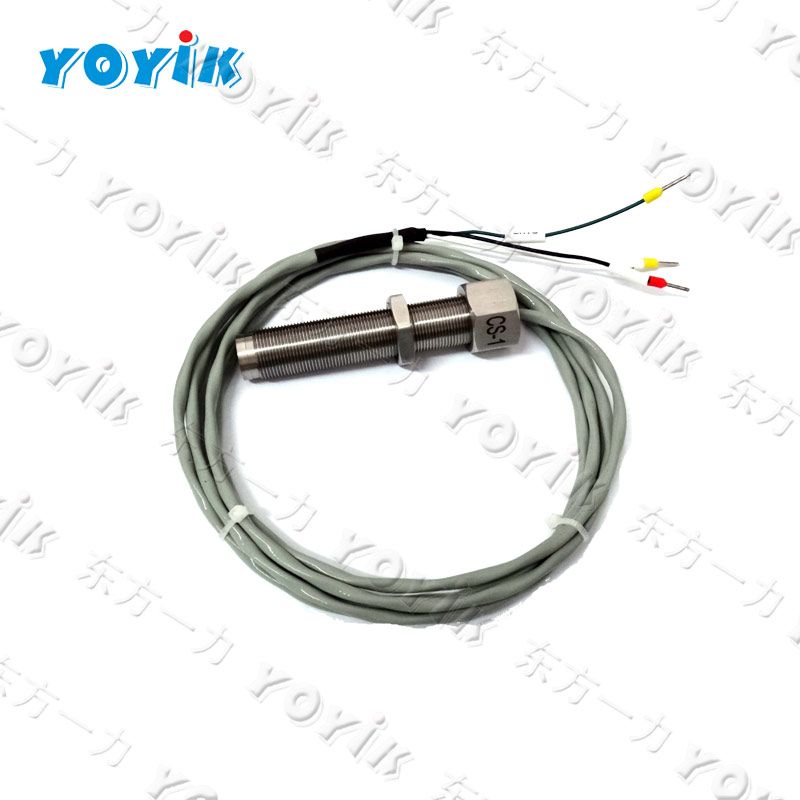

 Rotation Speed Probe DF6101-005-065-01-03-00

Rotation Speed Probe DF6101-005-065-01-03-00. Application: it is suitable for monitoring and protecting zero rotating speed and reverse speed of rotary machinery such as industrial feed pumps, turbines, compressors and blowers.

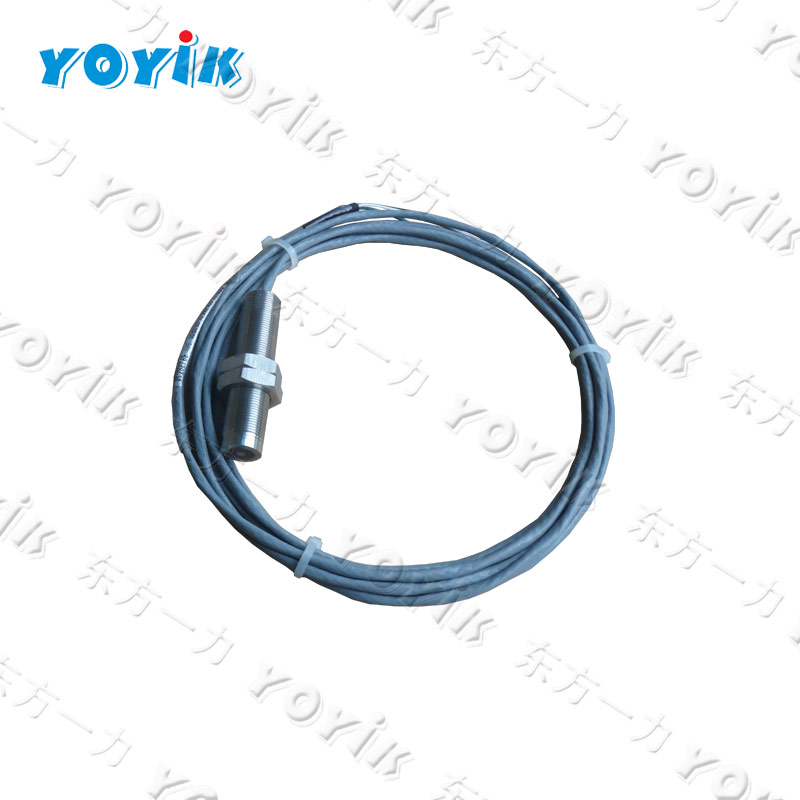

 Rotation Speed Probe DF6101-005-065-01-03-00

Rotation Speed Probe DF6101-005-065-01-03-00. A high sensitivity permanent magnet with magneto resistive element is applied to achieve non-contact speed measurement. The main objects of measurement are ferromagnetic materials, such as gears, rack, cam and characteristic convex concave surface. When the object is rotating, the sensor outputs the pulse signal which is related to the rotation frequency. This product combines modern advanced electronic technology, so that the sensor has high sensitivity, high reliability, excellent anti-interference performance, and can work steadily for a long time. The probe is easy to install, easy to use and versatile, and has been widely used in various fields. It has high measuring accuracy, waterproof and oil resistant, inductive objects are magnetic materials or magnetic materials, and have strong anti-interference ability. The vibration of gear shaft has no effect on output signal.

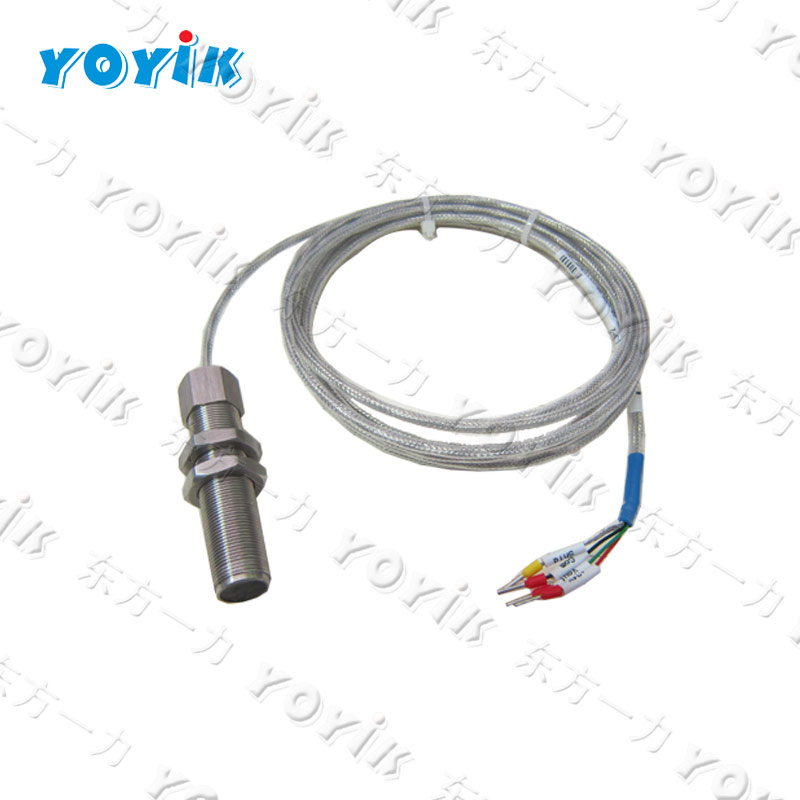

 Rotation Speed Probe DF6101-005-065-01-03-00

The same series of products are:

Rotation Speed Probe      DF6101

Rotation Speed Probe      CS-02

Rotation Speed Probe      CS-03

Rotation Speed Probe      CS-1 L=100

Rotation Speed Probe      CS-1 L=75

Rotation Speed Probe      CS-1 L=90

Rotation Speed Probe      CS-3 M10*1

Rotation Speed Probe      CS-3-L190

Rotation Speed Probe      CS-3-M10*1 L=130

Rotation Speed Probe      CS-3-M16-L100

Rotation Speed Probe      CS-3-M16-L220

Rotation Speed Probe      G-065-02-01

Rotation Speed Probe      G-075-02-01

Rotation Speed Probe      ZS-01 L=75

Rotation Speed Probe      ZS-01 L=90

Rotation Speed Probe      ZS-03 L=65

Rotation Speed Probe      ZS-04 L=100

Rotation Speed Probe      ZS-04 L=75

Rotation Speed Probe      for rotation speed monitor DF9011 Pro

Rotation Speed Probe      CS-01

Rotation Speed Probe      CS-1

Rotation Speed Probe      CS-1 L=65

Rotation Speed Probe      CS-1 L=80

Rotation Speed Probe      CS-3-L100
