Test Solenoid Valve

Date:2016-7-12 20:31:30 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,

China Steam Turbine Test Solenoid Valve Manufacturer





PRODUCT DESCRIPTION



Test Solenoid Valve is energized to cut off the power oil supply, as a close test to the valve, the electrical trip also moves.



Test solenoid valve is used for closing test of valves. In normal operation, the test solenoid valve is powered off, so that the HP EH oil can be directly connected to the upper chamber of the unloading valve. When the test solenoid valve is electrified, it opens the oil return channel to cut off the high pressure oil supply. When running the stem action test in RSV, the test solenoid valve is electrified by the electronic controller.

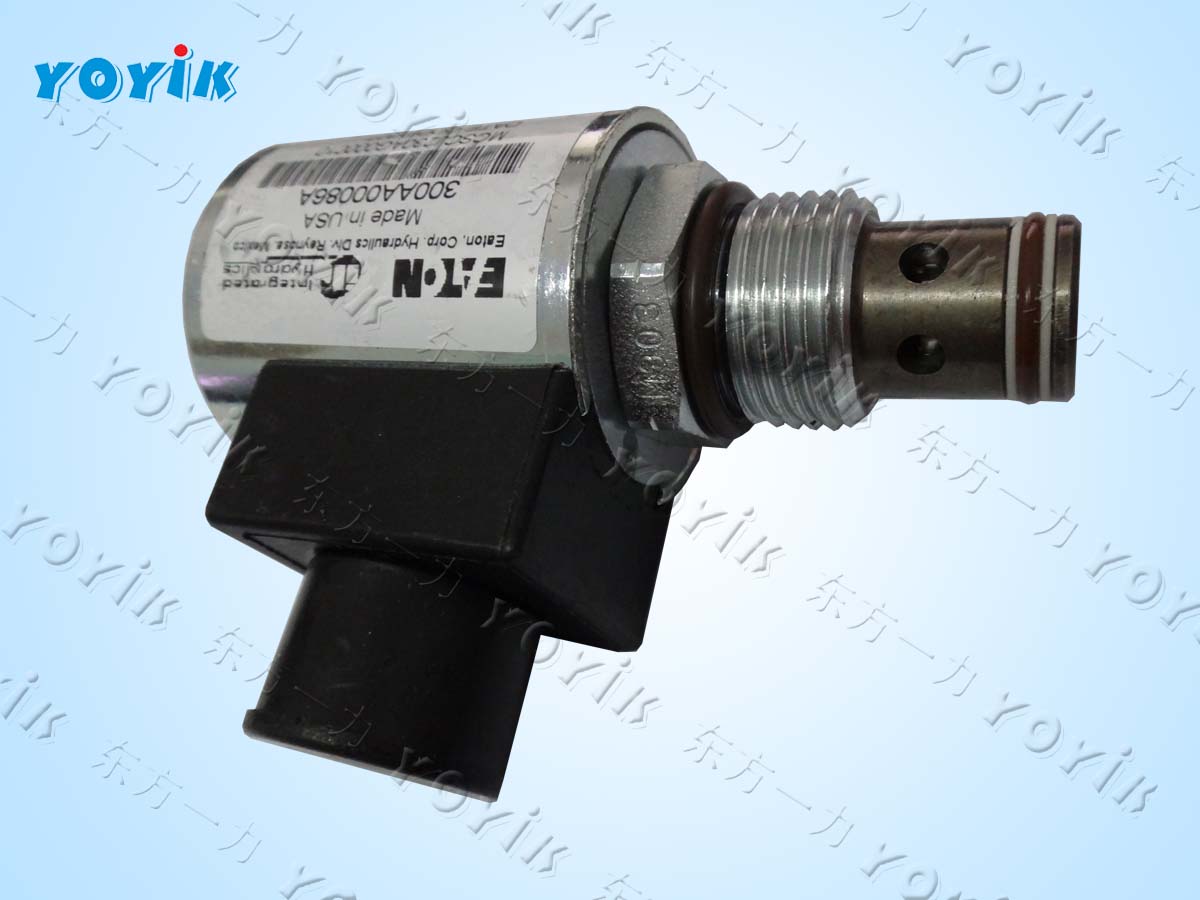

PRODUCT PICTURE









AVAILABLE MODELS



Test Solenoid Valve 300AA00086A	Test Solenoid Valve 0217BH7
Test Solenoid Valve 22FDA-F5T-W220R-20/LBO	Test Solenoid Valve SV4-10(V)-C-0-230A
Test Solenoid Valve 24BII-H6B-T





RELATED PRODUCTS



OPC Solenoid Valve	Shutoff Valve	Servo Valve	High Pressure Globe Valve DN40



Please contact us if your need is not listed above. SEND EMAIL
