Wearing Parts for Generator
Date:2016/7/12 19:42:31 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,China Steam Turbine Generator Wearing Parts Manufacturer
DESCRIPTION
As one of the core equipment of the power plant, the normal operation of the turbogenerator depends on many different components working together, and some vulnerable spare parts need to be replaced regularly to ensure the reliable operation of the generator. The following are some common turbogenerator wearing parts:
Stator Lead Wire Connection for Generating Units
Insulated connection pipe, cone washer, water connector, joint sleeves, etc.

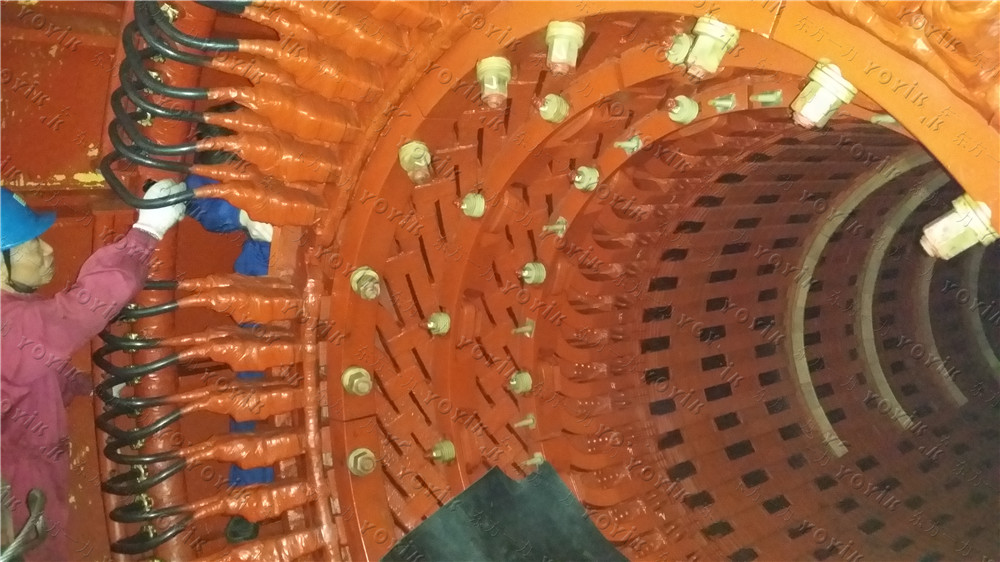

Stator coil assembly for generating units
Insulation box, upper and lower coil, locking washer, End slot wedge, stator slot wedge, wedge with hole, Air gap diaphragm.
Stator Wire Assembly
Terminal bushing assembly, insulation lead bushing assembly, sealing ring, cone end fastening screw, terminal bushing, abstraction pipe.
Turbine generator bearing assembly for generating units
Screw plug of bearing metal (turbine end and exciter end) tubing joint assembly
Turbine generator rotor assembly for generating units
Locking washer, pressure ring, balance piece, retaining ring, ring key, Air blade (turbine end and exciter end)
Turbine generator rotor coil assembly
End space layer, retaining ring sector insulation, Insulation end ring (turbine end), insulating cover plate (exciter end)
Rotor leads assembly: Lead screw insulation, sealing nut.
Terminal bushing assembly: Washer, backing ring, lead screw, fan casing, etc.
Oil sealing assembly
Pressure guide tube, dowel pin, inner oil retaining cover, sealing bearing bush
The above vulnerable spare parts are the key parts of the generator, and they need to be regularly maintained and replaced according to different operating conditions and manufacturer's recommendations.
