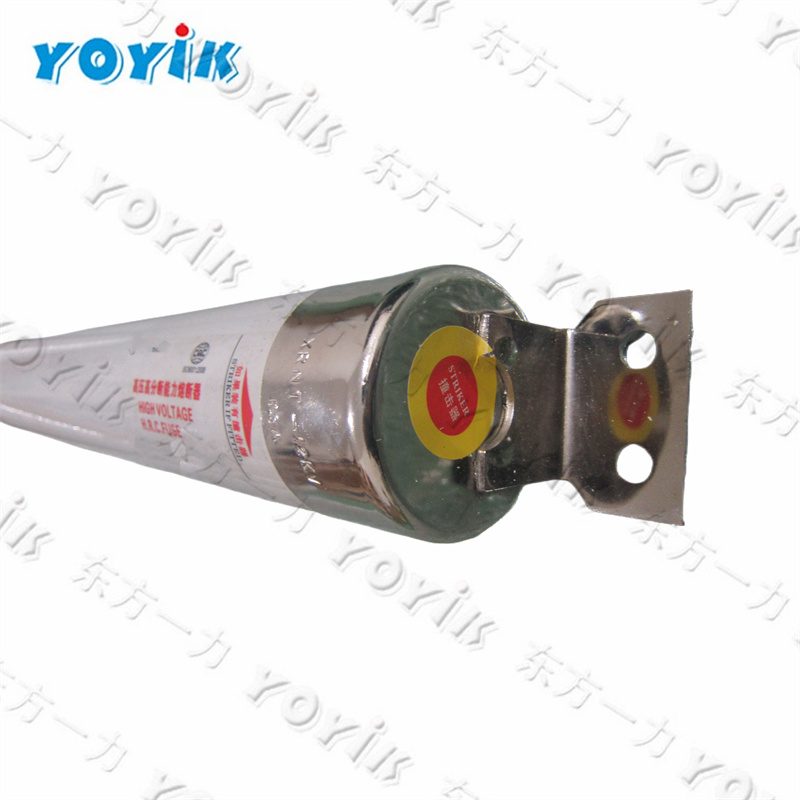

The voltage transformer protection Fuse XRNP-7.2/2-50-1 is suitable for AC 50Hz, a rated voltage of 3.6 ~ 40.5KV, and a rated current to 6.3A for the AC. It is used as a voltage transformer overloaded or short -circuit protection. This high-voltage fuse complies with the national GB15166.2 standard and IEC282-1 standard



 The voltage transformer protection Fuse XRNP-7.2/2-50-1 adopts a inserted structure and inserts the fuse into the base, which has the advantages of convenient replacement; the melts and chemical processing of melts and chemical treatment of two different metal wires: high -resistant and low -resistor. The sand is sealed in the melting pipe; the molten pipe is made of high -strength aluminum. When the line fails, the melt melted to generate an arc. The quartz sand immediately extinguished the arc to cut off the electrical appliance to protect the voltage transformer and its circuit.
