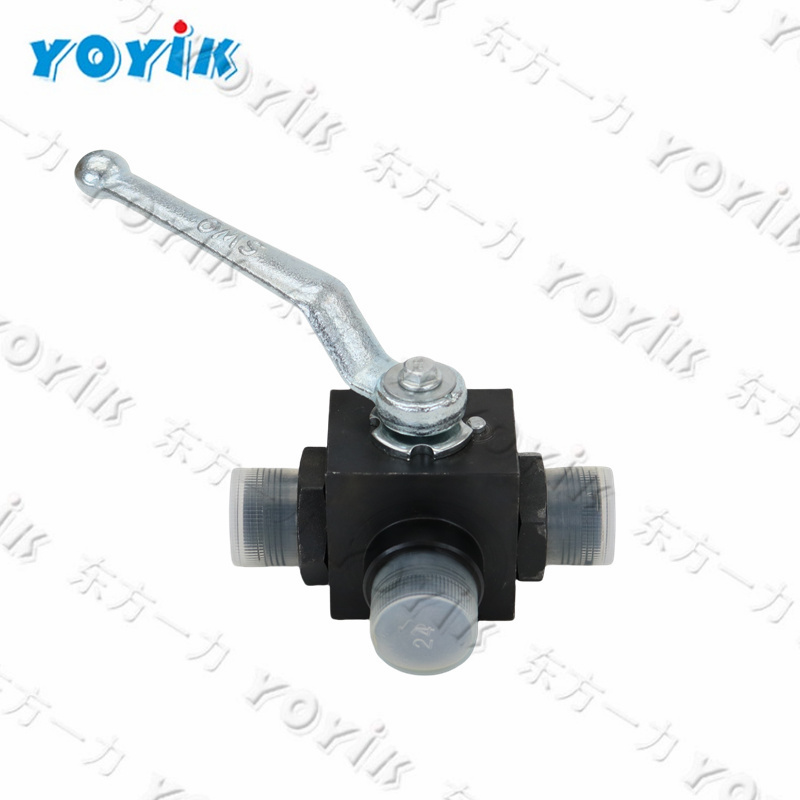

The three-way hydraulic directional valve QJ-3.2MPA-10Lis mainly used for medium switching in fans and hydraulic systems, such as the outlet regulating pipelines of primary fans and supply fans. The relative movement of the valve core within the valve body is used to control the opening and closing of the valve port, thereby achieving control over the flow direction of hydraulic oil.

The advantages and characteristics of QJ-3.2MPA-10L three-way hydraulic directional valve are as follows:

1. Precise control: able to accurately control the flow of hydraulic oil, ensuring the stability and reliability of equipment operation.

2. Efficient operation: able to maintain stable flow and pressure control even under high loads.

3. Compact design: Compact structure, space saving, easy to install and maintain.



Befoe installing the three-way hydraulic directional valve QJ-3.2MPA/10l, clean the valve body, check the pressure, flow rate, and interface matching. Install according to the flow direction markings, choose a location that is easy to operate and has no severe vibration. Ensure the pipeline connection is sealed to avoid forced force, and exhaust after installation. During the trial operation, first check the low pressure to ensure there are no blockages or leaks before increasing the working pressure.
