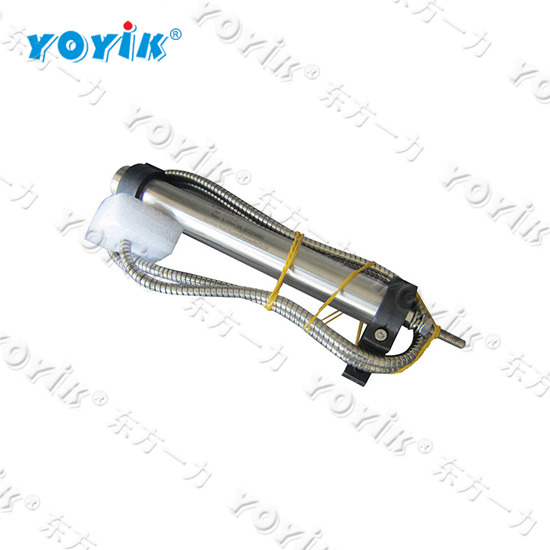

LVDT Position Sensor TDZ-1-150 for Madura power
Date:2025/3/25 8:40:28 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,The LVDT Position Sensor TDZ-1-150 is based on the principle of electromagnetic induction and detects the position change of the target object by measuring the change in the inductance of the coil. It consists of a primary coil and two secondary coils. When the iron core moves in the coil, it causes the magnetic flux in the coil to change, thereby forming a voltage difference signal. After processing, this signal can accurately reflect the displacement of the iron core and achieve high-precision displacement measurement.
Technical parameters
-Linear range: ±150mm
-Accuracy error: 0.5%, 0.25%
-Sensitivity: 2.8~230mV/V/mm
-Primary excitation voltage: 5Vrms (1~5Vrms)
-Excitation frequency: 1KHZ (400Hz~10KHZ)
-Dynamic frequency: 200Hz(3db)
-Zero voltage: less than 0.5% of full scale output
-Sensitivity drift: 0.01%/¡æFS
-Operating temperature: -55¡æ~+150¡æ (special specifications can reach 0~+280¡æ)
Application areas
TDZ-1-150 LVDT position sensor is widely used in many fields, including:
1. Industrial automation: used for displacement monitoring and control in automated production lines.
2. Mechanical manufacturing: used for displacement measurement and position feedback of machine tools, robots and other equipment.
3. Energy and power: used for displacement measurement of oil motors in steam turbines in power plants to ensure precise control and safe operation of equipment.
4. Automobile manufacturing: used for dimensional measurement of automobile parts and displacement monitoring during assembly.
5. Aerospace: used for precision displacement measurement and control systems for aircraft and spacecraft.
